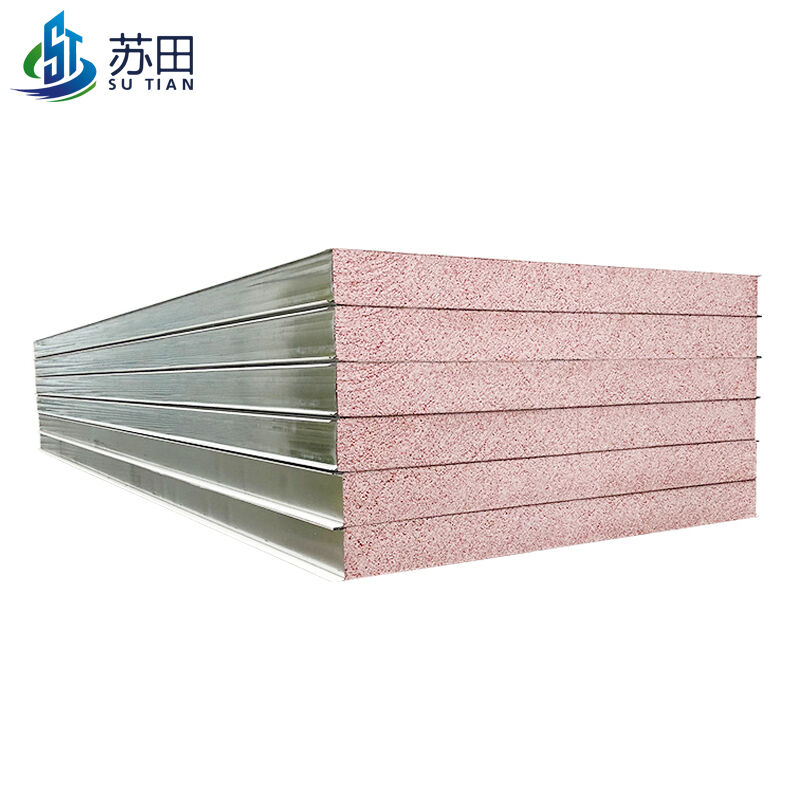

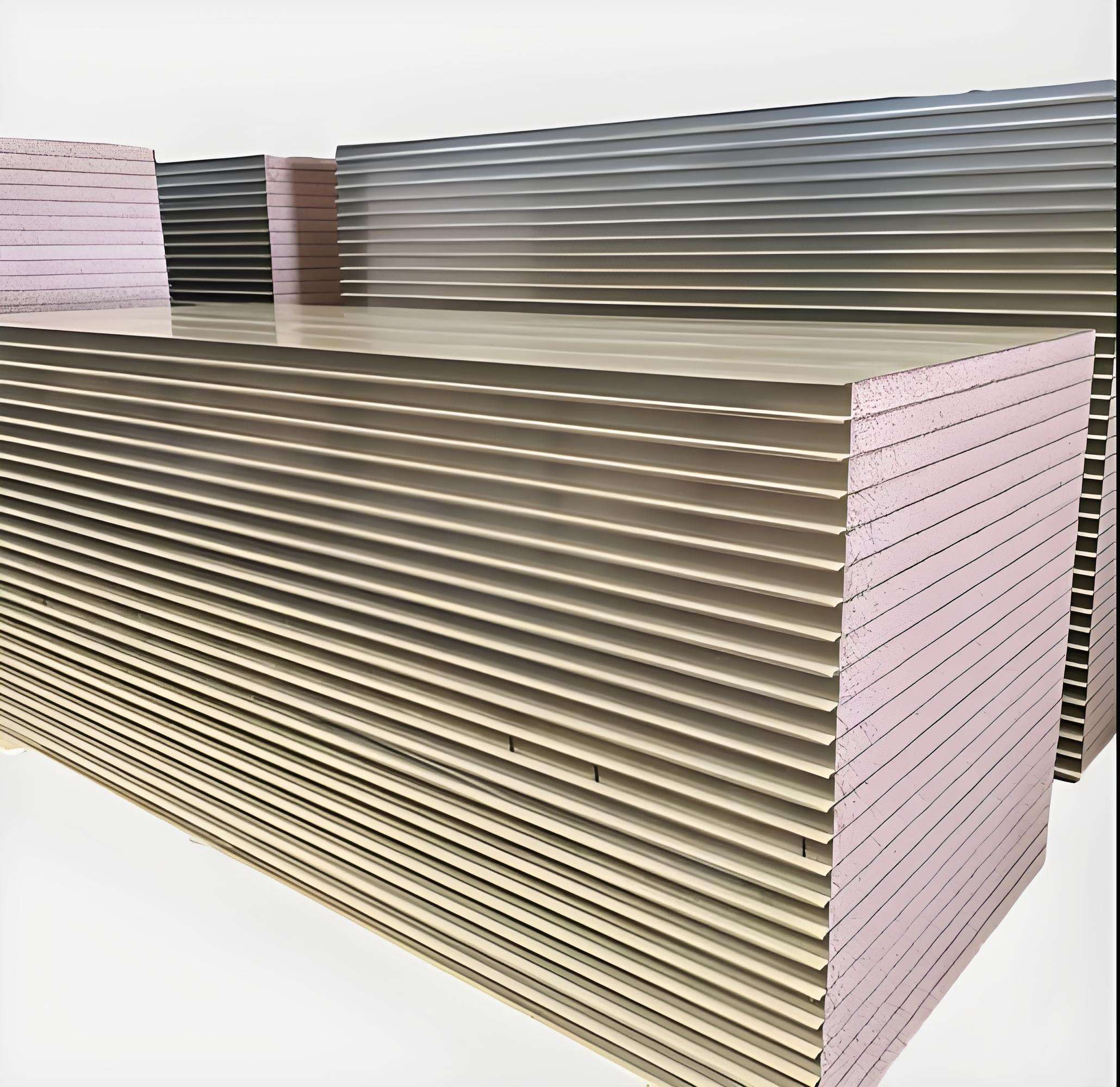

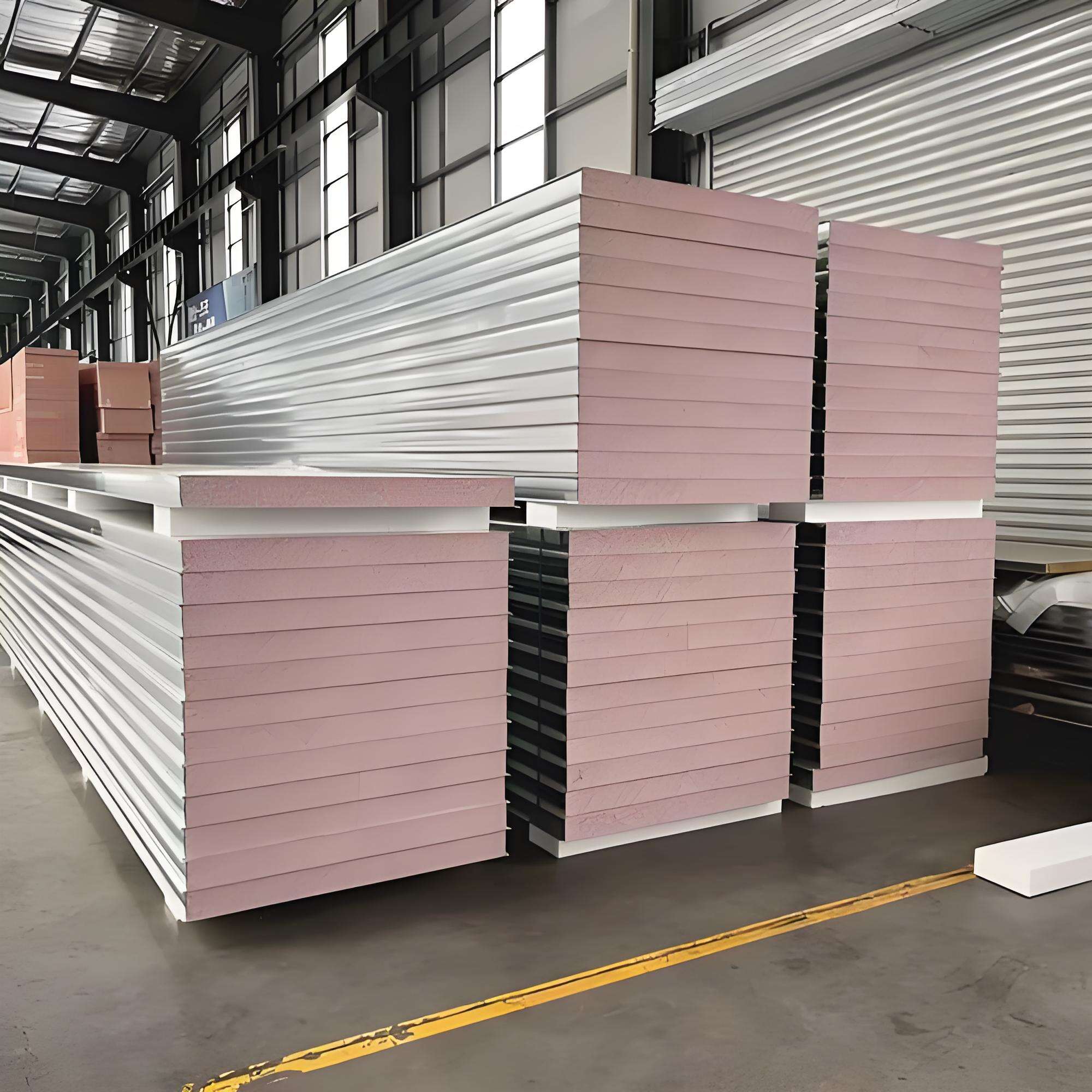

Mechanized True Gold Purification Panel
-MOQ：50 Square Meters【Required】
-Core Material： Modified polystyrene true gold board (fireproof isolation granule technology)
-Surface Material： Galvanized steel plate, color-coated steel plate, 304 stainless steel plate (optional)
-Core Density： 20-25kg/m³
-Standard Thickness：50mm/75mm/100mm (customizable)
- Overview
- Specifications
- Product Features
- Application Scenarios
- FAQ
- Recommended Products

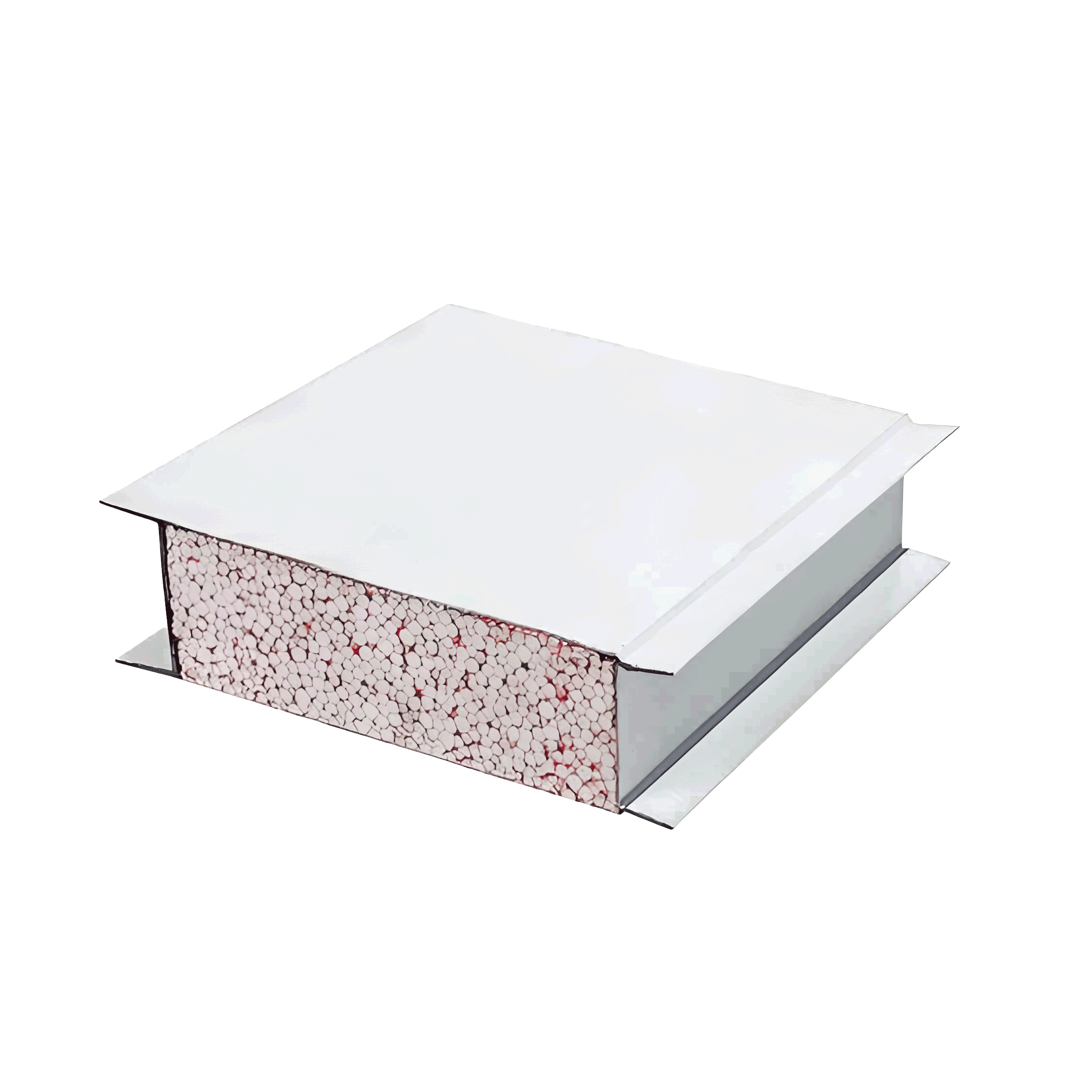

Welcome to our premium Mechanized True Gold Purification Panel solutions, where ultimate thermal insulation energy saving and professional fireproof enclosure functions are perfectly integrated. Also known as PROPOR purification panel, our product takes modified polystyrene as raw material to make the true gold core via polymer fireproof isolation granule technology, matched with high-quality galvanized steel plates, color-coated steel plates or 304 stainless steel plates as the surface layer.
It is formed by high-temperature and pressure compounding and precision edge trimming and grooving through a high-speed automatic forming machine. The core material forms a heat-insulating barrier honeycomb structure when exposed to fire, effectively preventing flame penetration. Integrating the characteristics of Class B fire resistance, ultra-low thermal conductivity, light weight, anti-shrinkage and weather resistance, it creates a constant temperature, energy-saving, safe and durable enclosure structure for cleanrooms. Whether you are a cleanroom engineering designer, contractor or factory builder, it is a cost-effective optimal solution for building industrial constant temperature clean spaces.
| Item | Specification |
|---|---|
| MOQ | 50 Square Meters【Required】 |
| Core Material | Modified polystyrene true gold board (fireproof isolation granule technology) |
| Surface Material | Galvanized steel plate, color-coated steel plate, 304 stainless steel plate (optional) |
| Core Density | 20-25kg/m³ |
| Standard Thickness | 50mm/75mm/100mm (customizable) |
| Standard Width | 950mm/1150mm (non-standard customizable) |
| Length | Customized according to customer project requirements |
| Fire Resistance Grade | Class B1 (flame-retardant) |
| Thermal Conductivity | ≤0.030 W/(m·K) |
| Compressive Strength | ≥0.2MPa |
| Anti-shrinkage | No obvious shrinkage or deformation during long-term use |
| Splicing Method | Tongue-and-groove splicing |
| Sealing Process | Galvanized steel strip edge sealing + high-strength flame-retardant structural adhesive bonding |
| Compliance | ISO9001 Quality Management System, ISO14001 Environmental Management System, Class B1 fire resistance test certification, thermal insulation performance test report |
Class B1 High-efficiency Fire Resistance: Adopting the core technology of particle fireproof isolation film, each organic particle forms an independent fireproof unit. When exposed to fire, it forms a continuous honeycomb heat-insulating barrier structure to prevent flame spread and penetration without toxic smoke release, meeting the strict fire code requirements of industrial clean factories.
Ultimate Thermal Insulation: The true gold core is made of modified polystyrene foam with ultra-low thermal conductivity comparable to polyurethane boards, and its thermal insulation effect is far superior to rock wool, silicone rock and other core materials. It can effectively block heat transfer between indoor and outdoor, greatly reduce the air conditioning and heating energy consumption of cleanrooms, and realize constant temperature and energy-saving operation.
Light Weight & Anti-shrinkage: With a core density of only 20-25kg/m³, the material is ultra-light, which greatly reduces the bearing load of the building main body and makes transportation and installation more convenient. After special modification treatment, the core material has excellent anti-shrinkage and anti-aging performance, no collapse or deformation during long-term use, and the panel structure has strong stability.
Excellent Weather Resistance: The core material is resistant to high and low temperatures and ultraviolet rays, suitable for various indoor and outdoor use environments. With a strict edge sealing and sealing process, it effectively prevents the intrusion of water vapor and dust, and can maintain stable performance in complex environments such as humidity and high temperature, without easy pulverization or failure.
Clean & Easy to Maintain: The surface of the steel plate is smooth and flat, free of dust generation and accumulation, scratch and corrosion resistant. It can be directly wiped and cleaned with disinfectant without fiber shedding, meeting the hygiene grade requirements of industrial cleanrooms, with simple and convenient daily maintenance.
High Cost Performance: Its thermal insulation performance is close to that of polyurethane boards, fire resistance is better than ordinary polystyrene boards, and the production and manufacturing cost is lower. It has a higher cost performance than similar thermal insulation purification panels, which can effectively control the overall project cost and is suitable for large-scale industrial clean engineering projects.
Flexible Customization: Support non-standard customization of thickness, width and length. The surface layer can be matched with anti-static and antibacterial coatings to adapt to industrial clean scenarios with different cleanliness levels and different constant temperature requirements. The standardized specifications enable more efficient installation.
Industrial Clean Factories: Suitable for the walls and ceilings of various general industrial clean factories, taking into account constant temperature energy saving and fire safety, and adapting to the clean production environment of machinery manufacturing, hardware processing and other industries.
Electronics Industry: Adapting to electronic component assembly workshops and clean areas supporting precision instruments with high constant temperature requirements and Class B1 fire resistance grade, accurately controlling indoor temperature and reducing energy consumption.
Cold Chain Supporting Industry: Used in cold chain food processing supporting clean areas and low-temperature storage auxiliary clean spaces, the ultimate thermal insulation performance effectively maintains indoor temperature and reduces the operating load of the refrigeration system.
New Energy Industry: Adapting to new energy material processing clean workshops and battery production supporting clean areas, meeting the requirements of constant temperature production, and having good fire protection performance at the same time.
Warehouse Clean Areas: Used for the enclosure structure of industrial clean warehouses and raw material storage clean areas, the characteristics of light weight and thermal insulation can reduce the energy consumption and building load of the warehouse space.
Clean Engineering in Heating Areas of Northern China: Especially suitable for clean factories in northern China's winter heating areas, the ultimate thermal insulation performance can greatly reduce heating energy consumption and realize energy-saving operation.
Q: What is the lead time for a custom Mechanized True Gold Purification Panel order?
A: The lead time typically ranges from 7 to 15 working days, depending on the customization complexity and order size of the product. Conventional specifications can be delivered quickly.
Q: The fire resistance grade of the Mechanized True Gold Purification Panel is Class B1, can it be adapted to pharmaceutical GMP workshops?
A: The core areas of pharmaceutical GMP workshops usually require Class A fire resistance. This product is suitable for scenarios with Class B1 fire resistance grade such as auxiliary areas and corridors of GMP workshops; the core areas can be used with our Class A fire resistance series purification panels.
Q: What is the difference in thermal insulation performance between this panel and polyurethane panels?
A: The thermal conductivity of the true gold core is close to that of polyurethane boards, and the thermal insulation effect is basically the same. Moreover, the true gold board has better anti-shrinkage and weather resistance, and more advantageous price, which is a cost-effective alternative to polyurethane boards.
Q: Can the Mechanized True Gold Purification Panel be used in outdoor clean auxiliary areas?
A: Yes, the core material is modified to be resistant to ultraviolet rays, high and low temperatures, matched with outdoor special surface coating and tight edge sealing, it can be adapted to the enclosure engineering of outdoor clean auxiliary areas, with both thermal insulation and fire protection performance.
Q: How do I maintain and clean the Mechanized True Gold Purification Panel?
A: The panel is easy to maintain and clean. Regular cleaning with a soft cloth with mild detergent or water will keep the surface clean. Avoid using strong acid, strong alkali or abrasive cleaners to prevent damage to the surface steel plate.
Q: Do you provide installation accessories and technical guidance for this panel?
A: While we mainly supply purification panel products, we can provide one-stop supporting installation accessories such as purified aluminum profiles, special flame-retardant sealants and splicing buckles. At the same time, we can provide professional installation technical guidance or recommend certified installation teams to ensure construction quality.
