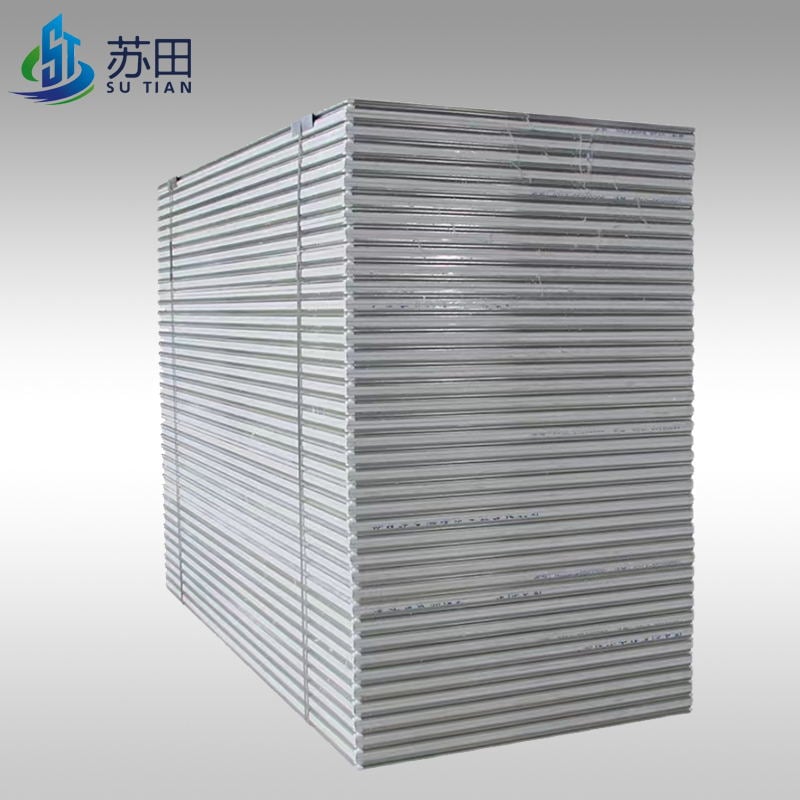

Page Brief Introduction: Handmade Cleanroom Panel is an upgraded version of the standard mechanized panel, a new type of reinforced composite sandwich panel independently developed and designed by Jinan Sutian Building Materials Technology Co., Ltd. It is composed of six core components: upper steel plate, lower steel plate, core material, galvanized keel, ABS corner piece and high-strength adhesive. The surface layer is made of high-quality color-coated steel plate or stainless steel plate, the four sides are edged with galvanized keel and sealed with galvanized angle pieces, connected by ABS plastic corner, and the inner core layer is filled with rock wool, glass magnesium, aluminum honeycomb, magnesium oxysulfate and other core materials. It is manufactured through heating, pressing, curing and other processes, with reinforced bearing capacity and customizable non-standard specifications. It can reduce the basic engineering and structural costs of buildings. The installation design of male-female mouth or Chinese character aluminum is optional, with convenient construction and easy disassembly and assembly. It is widely used in high-end clean areas such as biopharmaceutical workshops, electronic industry clean rooms, new energy clean rooms, operating rooms and laboratories with high requirements for airtightness and structural strength.
Advantage Points: Super structural strength, the four sides are reinforced with galvanized keel, and the bearing capacity is far higher than that of mechanized panels, which can adapt to the high load requirements of clean room ceilings and heavy equipment bearing walls. Strong customization ability, non-standard customization of width (980/1180mm standard, non-standard customizable), thickness (50/75/100mm) and length according to customer needs, to meet the unique design requirements of complex clean room projects. Multiple splicing methods are available, including tongue-and-groove (male-female mouth), middle mounting type (four female mouths), open suspension beam connection and hidden suspension beam connection, which are suitable for different construction scenarios and installation requirements. Excellent airtightness, the sealing of galvanized angle pieces and ABS corner pieces ensures minimal splicing gaps, effectively preventing the leakage of air and pollutants and meeting the high cleanliness requirements of Class 100-1000 clean rooms. Durable and stable, the manual layered pressing and curing process ensures tight bonding between the surface layer and the core material, which is not easy to deform and delaminate under long-term use. Good compatibility, can be perfectly matched with clean doors, clean windows and purification aluminum profiles to realize the integrated construction of clean room enclosure system.
Process Selling Points: Adopt manual reinforced edge sealing process, the four sides are wrapped with galvanized keel and sealed with galvanized angle pieces, and the corner parts are connected with ABS plastic corner pieces to enhance the overall rigidity and impact resistance of the board. The core material filling adopts manual layered paving and compaction process to ensure uniform density of the core material and full play of its fire resistance, thermal insulation and sound insulation performance. The heating and pressing process is carried out in a constant temperature curing room, and the curing time is strictly controlled to ensure the firm bonding between the surface layer and the core material and no delamination. The cutting and processing of the board are completed by manual fine operation, with smooth edges and high splicing precision, which ensures the overall aesthetics of the clean room. According to the project requirements, the customized drilling and slotting process is adopted to realize the precise matching of the board with pipelines, wires and functional accessories without damaging the structural integrity of the board. The finished product undergoes strict airtightness and bearing capacity tests to ensure that all performance indicators meet the high standards of high-end clean room engineering.
